Zulässige Lasten |
||||
Last- klasse |
Typ | charakteristische Einbausituation |
zulässige Lasten | |
Platten- dicke hcr |
Rand- abstand ccr |

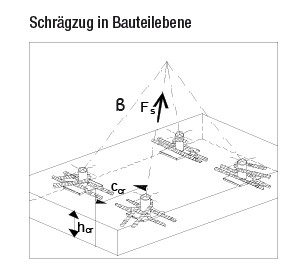

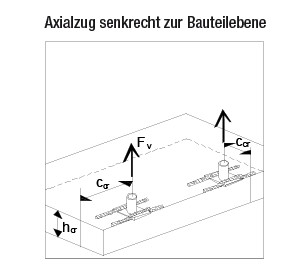

Axialzug zulFV Schrägzug zulFS β ≤ 45° |
||
[M/Rd] | [cm] | [kN] | ||
Betonfestigkeit fck ≥ 15 N/mm² | ||||
0.5 | 12 x 30 | 8 | 18 | 5.0 |
0.8 | 14 x 33 | 9 | 18 | 8.0 |
1.2 | 16 x 35 | 9 | 25 | 12.0 |
2.0 | 20 x 47 | 11 | 30 | 20.0 |
2.5 | 24 x 54 | 12.5 | 40 | 25.0 |
4.0 | 30 x 72 | 15 | 50 | 40.0 |
6.3 | 36 x 84 | 16.5 | 65 | 63.0 |
8.0 | 42 x 100 | 18 | 65 | 80.0 |
12.5 | 52 x 120 | 21.5 | 75 | 125.0 |
Betonfestigkeit fck ≥ 25 N/mm² | ||||
0.5 | 12 x 30 | 8 | 18 | 6.5 |
0.8 | 14 x 33 | 9 | 18 | 10.3 |
1.2 | 16 x 35 | 9 | 25 | 15.5 |
2.0 | 20 x 47 | 11 | 30 | 25.8 |
2.5 | 24 x 54 | 12.5 | 40 | 32.3 |
4.0 | 30 x 72 | 15 | 50 | 51.6 |
6.3 | 36 x 84 | 16.5 | 65 | 81.3 |
8.0 | 42 x 100 | 18 | 65 | 103.3 |
12.5 | 52 x 120 | 21.5 | 75 | 161.4 |
