Zulässige Lasten |
||||||
| Last- klasse |
Typ | charakteristische Einbausituation | zulässige Lasten | |||
| Axialzug zulFV |

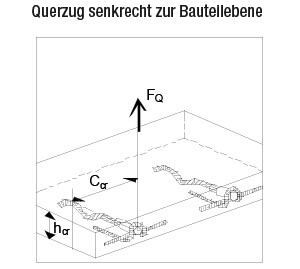

Querzug zulFQ |

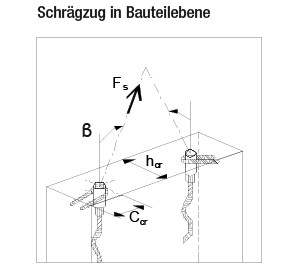

Schrägzug zulFS β ≤ 45° |
||||
| Platten- dicke hcr |
Rand- abstand Ccr |
|||||
| Alpha Goliath Liste 42 |
Alpha Goliath |
Alpha Goliath Liste 42 |
||||
| [M/Rd] | [cm] | [kN] | ||||
| Betonfestigkeit fck ≥ 15 N/mm² | ||||||
| 0.5 | 12 x 300 | 6 | 14 | 10.0 | 3.5 | 13.0 |
| 0.8 | 14 x 310 | 6 | 18 | 11.0 | 3.5 | 14.0 |
| 1.2 | 16 x 320 | 8 | 18 | 16.0 | 4.0 | 16.0 |
| 1.6 | 18 x 360 | 10 | 20 | 28.0 | 8.0 | 18.0 |
| 2.0 | 20 x 400 | 10 | 25 | 30.0 | 10.0 | 20.0 |
| 2.5 | 24 x 450 | 10 | 30 | 40.0 | 10.0 | 23.0 |
| 4.0 | 30 x 600 | 14 | 35 | 57.0 | 22.0 | 44.0 |
| 6.3 | 36 x 750 | 14 | 40 | 90.0 | 22.0 | 49.0 |
| 8.0 | 42 x 850 | 16 | 50 | 122.0 | 22.0 | 61.0 |
| 12.5 | 52 x 900 | 20 | 60 | 180.0 | 42.0 | 75.0 |
| Betonfestigkeit fck ≥ 25 N/mm² | ||||||
| 0.5 | 12 x 300 | 6 | 14 | 11.0 | 4.5 | 16.0 |
| 0.8 | 14 x 310 | 6 | 18 | 14.0 | 4.5 | 18.0 |
| 1.2 | 16 x 320 | 8 | 18 | 21.0 | 5.0 | 20.0 |
| 1.6 | 18 x 360 | 10 | 20 | 34.0 | 10.0 | 24.0 |
| 2.0 | 20 x 400 | 10 | 25 | 34.0 | 13.0 | 25.0 |
| 2.5 | 24 x 450 | 10 | 30 | 45.0 | 13.0 | 28.0 |
| 4.0 | 30 x 600 | 14 | 35 | 65.0 | 29.0 | 57.0 |
| 6.3 | 36 x 750 | 14 | 40 | 100.0 | 29.0 | 65.0 |
| 8.0 | 42 x 850 | 16 | 50 | 130.0 | 29.0 | 78.0 |
| 12.5 | 52 x 900 | 20 | 60 | 180.0 | 54.0 | 98.0 |
